RH-20H-400 (hard rail) horizontal slant bed CNC lathe finishing machine

Both X and Z guide rails are hard rails; the main machine does not include: chuck, turret, motor, electrical components, electrical box, and peripheral sheet metal parts, which are assembled, inspected, and painted according to relevant international and domestic standards.

Key words:

Yunnan Runhang

precision machinery

CNC lathe

hard rail lathe

Classification:

Product Consulting:

Product Description

Both X and Z guide rails are hard rails; excluding: main machine without chuck, turret, motor, electrical components, electrical box, and peripheral sheet metal parts, assembled, inspected, and painted according to international and domestic relevant standards.

Standard configuration:

1. High-quality resin sand casting;

2. Imported ball screw (PMI);

3. Spindle assembly: the spindle is an NN structure assembled spindle, using domestic CSC bearings. (Optional imported "SKF/NSK" bearings).

4. Screw rod bearings: optional imported NSK bearings; and domestic CSC bearings;

5. Joint venture lubrication system (Hegao);

6. One X/Z coupling each;

7. Main motor pulley, tension sleeve, belt (Japan Samsung);

8. Encoder bracket. (No encoder);

9. Packaging: wooden base + rust-proof + moisture-proof.

Special configuration: (This configuration can be customized according to customer requirements, price to be determined separately):

1. Hydraulic chuck and high-speed rotating oil cylinder (Germany ROHM/Korea RYON/Taiwan Yichuan/domestic Keput) installed;

2. Sheet metal (including internal and external protection);

3. Hydraulic station; (Taiwan Weisheng/domestic Jianhua) installed, oil circuit distribution and installation;

4. Turret; 80-8T/12T.

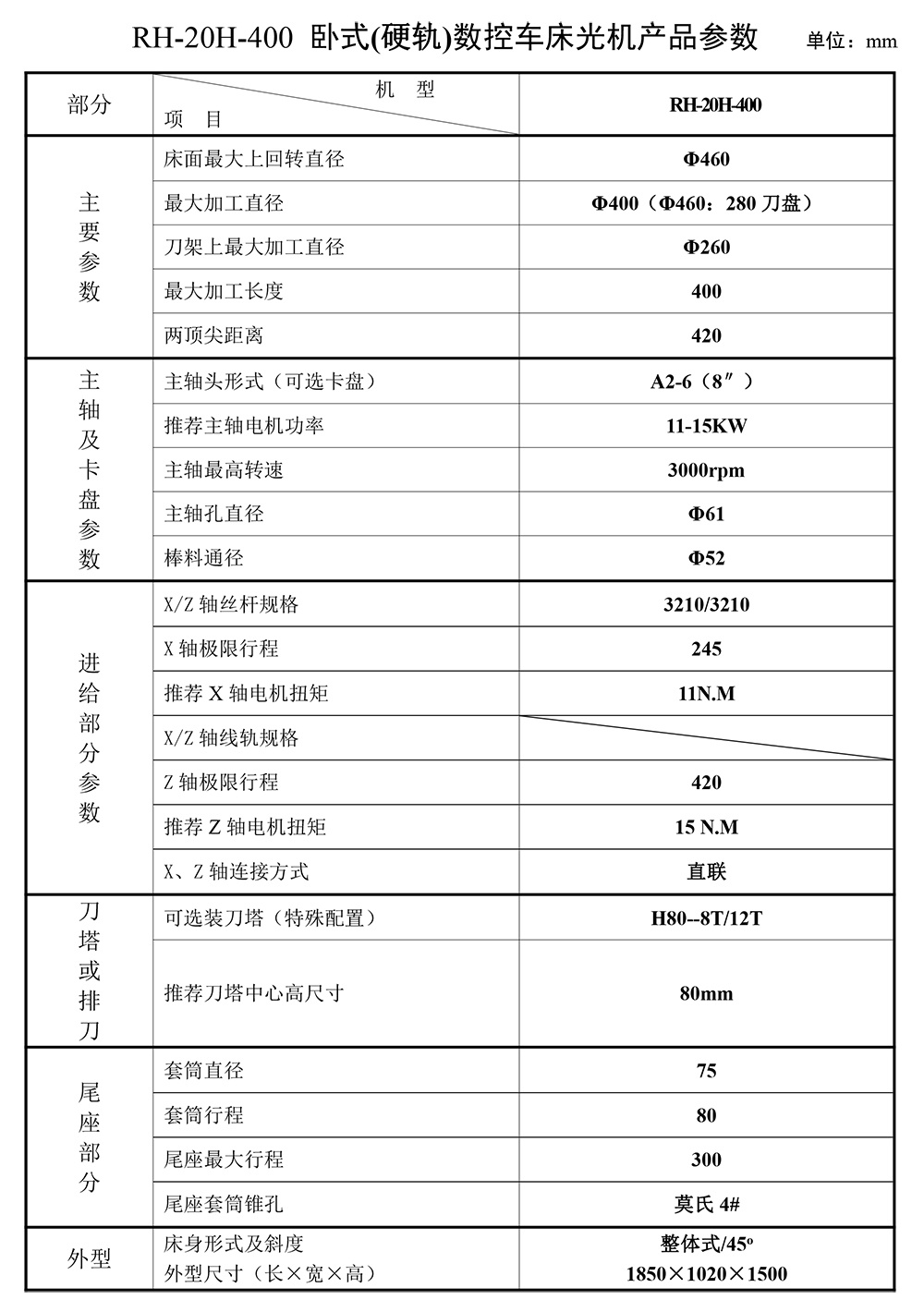

Note: 1. This machine tool is our company's standard product, specific configuration refers to the optical machine configuration table;

2. Our company is constantly conducting research and improvement work, therefore reserves the right to change the optical machine technical parameters at any time, and changes will not be notified separately. Thank you!
